Getting started as an 8x8 Technology Partner

The purpose of this guide

8x8 is proud to provide a cohesive user experience for customers when using 8x8 products. Providing an easy to understand user experience and a consistent UI is essential in achieving that.

This guide helps to style your products to fit within the 8x8 ecosystem allowing a smooth user experience and easy to follow UI.

Areas of focus when building for 8x8

Location

Integrations can be deployed where needed the most but the primary location is the "meta data" panel. It's a place where supporting content or integrations live to help the user complete tasks.

Style

The 8x8 design system is called Oxygen. It contains specifications for a large range of web and mobile components with guidance on how to use each one.

Accessibility

Accessible products and integrations are important. Any 3rd party integration deployed inside an 8x8 product should be WCAG 2.1 AA compliant.

Theme

8x8 products support switching between dark and light mode so integrations must also support dark and light styles.

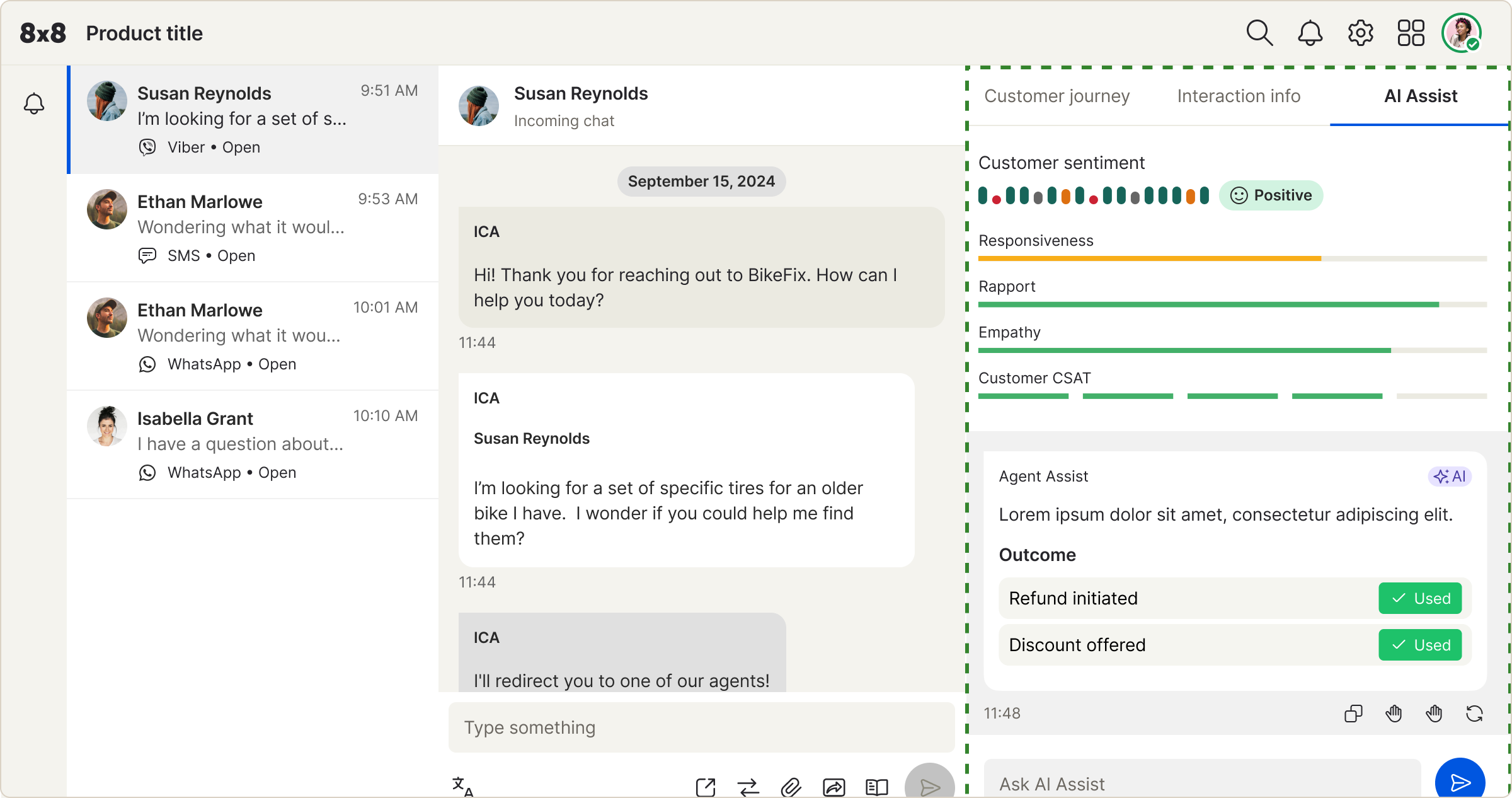

The meta data panel

The meta data panel is a common place where integrations could live inside 8x8. It's a place where supporting content and integrations can help users complete their tasks.

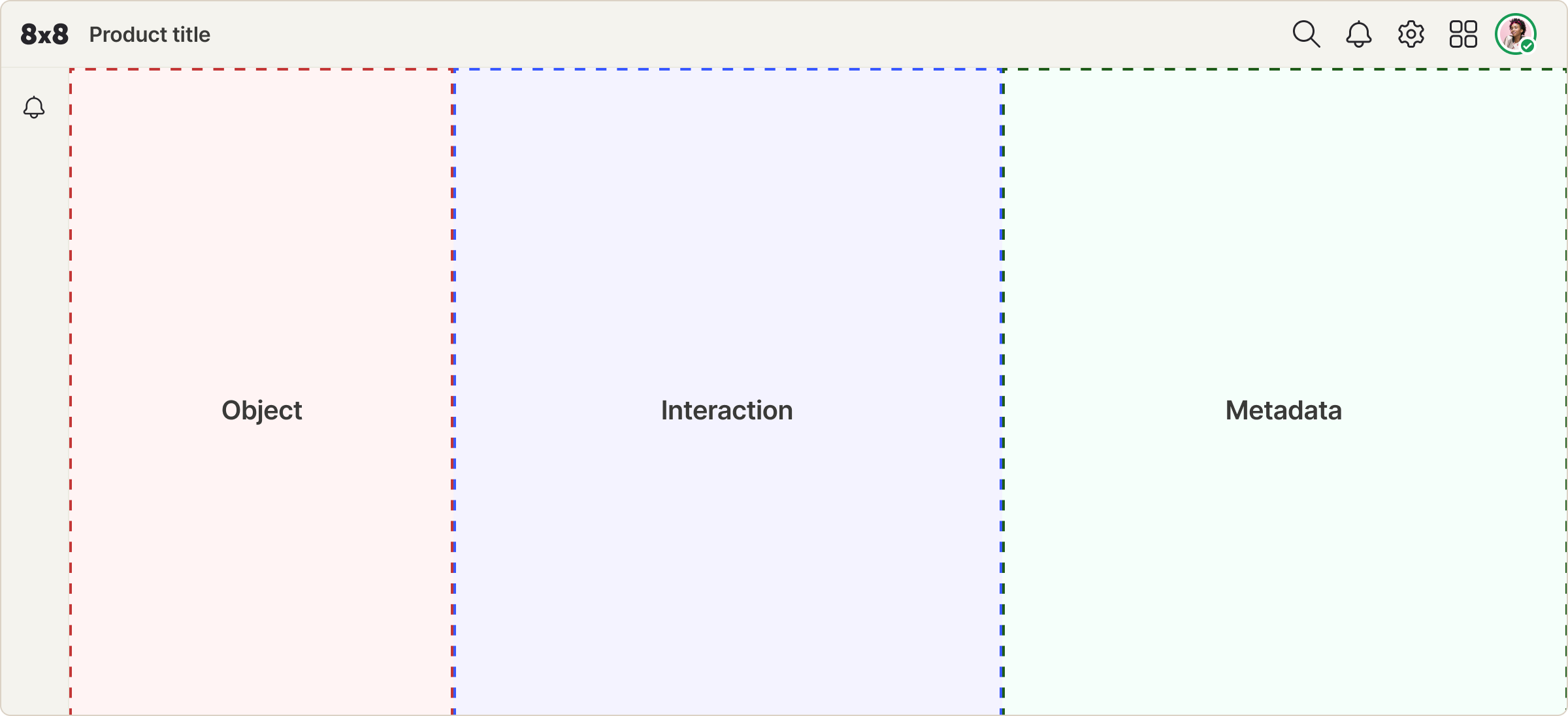

The meta data panel lives in the right-hand side of the UI and takes up just under half the size of the window. The UI is on a flexible grid so integrations should change width depending on the users screen size.

8x8 Notifications

If your integration has notifications we can feed the user events where ever they are in the app so they are aware when something happens.

If your integration supports notifications then here's an explanation of how they would work inside 8x8 and how they can be styled.

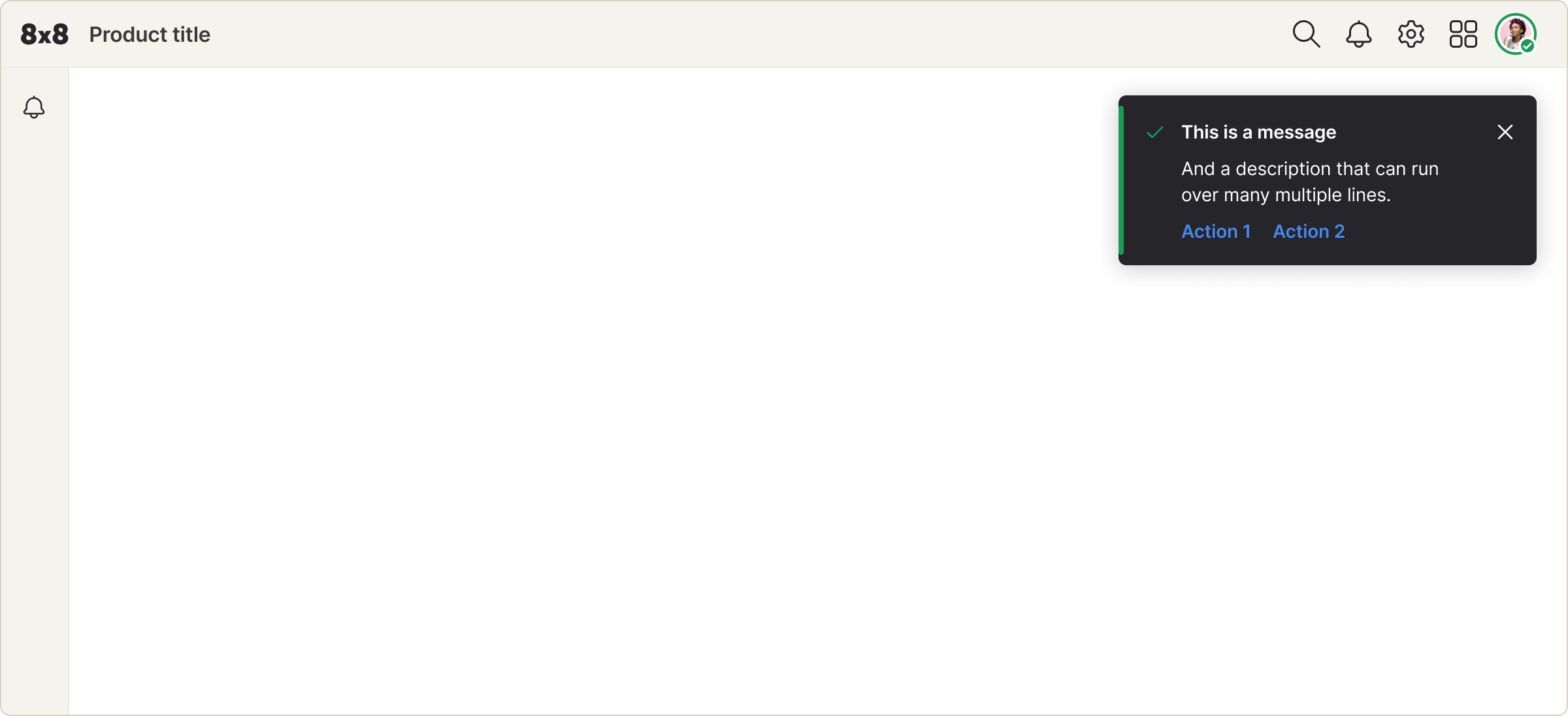

Notifications float in the top right corner of the UI. The user can dismiss or action them once they've seen it.

Types of notifications

The success message is shown when a task has been completed successfully

The warning message is shown when something might require the users attention

The error message is shown when something needs the users urgent attention

The info message can be used for anything else that the user needs to be notified on

Oxygen - 8x8's design system

Oxygen is 8x8's design system. It's a comprehensive library of components and styles that make up the UI. It's been extended to help integrations style their own products to fit inside 8x8 products.

The design system includes three main components:

Color palette

Primary: #0056e0
Text: #26252a
Background: #FFFFFF
Success: #127440
Warning: #F8AE1A
Error: #CB2233

Typography

8x8 use the font Inter which is available and easily embeddable from Google fonts. The typography library contains 9 type styles covering small text to headings:

$label01
$bodyBold01
$heading01
$heading02

Iconography

A comprehensive icon library for consistent visual communication.

Theme

In 8x8 products users can choose whether to use view in light or dark mode by switching in the settings. Therefore it's important integrations have the support for both light and dark themes.

Light mode

Primary button bg and form controls: #0056e0
Secondary button bg: #26252a
Destructive button and errors: #CB2233
Warnings and badge notifications: #F8AE1A
Success: #127440
Text and icons: #26252a
Background color: #FFFFFF
Secondary background color: #F4F3EE

Dark mode

Primary button bg and form controls: #246FE5
Secondary button bg: #E0E0E0
Destructive button and errors: #D83848
Warnings and badge notifications: #F8AE1A
Success: #189B55
Text and icons: #ffffff
Background color: #666666

Accessibility

Any 3rd party integration deployed inside an 8x8 product should be WCAG 2.1 AA compliant.

A comprehensive guide of WCAG 2.1 AA can be found here https://www.w3.org/TR/WCAG22/

Stickersheet

Common styles and components to get you started. For anything extra please reach out to us.

Typography
Color palette
Icons
Buttons
Form elements
Tabs, tags, loading and badges

Typography

Inter: https://fonts.google.com/specimen/Inter

Style	Weight	Size	Line-height	Spacing
$heading02	600	1.75rem	2.5rem	-0.020rem
$heading01	600	1.25rem	1.75rem	-0.017rem
$body02	400	1rem	1.5rem	-0.011rem
$bodyBold02	600	1rem	1.5rem	-0.011rem
$body01	400	0.875rem	1.25rem	-0.006rem
$bodyBold01	600	0.875rem	1.25rem	-0.006rem
$bulletList01	400	0.875rem	1.5rem	-0.006rem
$label01	400	0.75rem	1rem	Normal
$labelBold01	600	0.75rem	1rem	Normal

Color Palette

Light mode	Dark mode
Primary button bg and form controls `#0056e0`	Primary button bg and form controls `#246FE5`
Secondary button bg `#26252a`	Secondary button bg `#E0E0E0`
Destructive button and errors `#CB2233`	Destructive button and errors `#D83848`
Warnings and badge notifications `#F8AE1A`	Warnings and badge notifications `#F8AE1A`
Success `#127440`	Success `#189B55`
Text and icons `#26252a`	Text and icons `#ffffff`
Background color `#FFFFFF`	Background color `#666666`
Secondary background color `#F4F3EE`
