Authentication

Overview

The 8x8 Event Streaming service supports two types of authentication credentials, depending on how you obtain them and which 8x8 system you're using.

📘 Authentication Method

Both authentication types use the same X-API-Key HTTP header, making the authentication mechanism consistent across both methods.

Authentication Types

Admin Console Keys (X-API-Key Header)

✅ Recommended

Admin Console Keys are the recommended authentication method for production applications. They provide centralized credential management through the 8x8 Admin Console.

Characteristics:

• Obtained from 8x8 Admin Console at admin.8x8.com
• Key format: Always starts with eght_
• Authentication method: HTTP header X-API-Key

How to Obtain:

If you do not have the API Keys option in Admin Console, you do not have the correct permission/role.

1. Log into 8x8 Admin Console

2. In the SETUP section, click API Keys

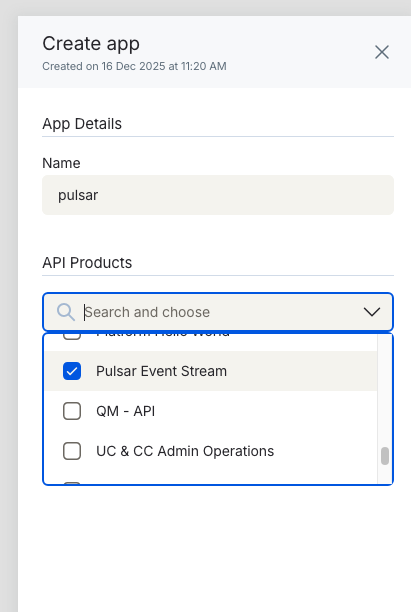

3. Click "Create App"

4. Enter an application name (no spaces allowed)

5. In the API Products dropdown, select "Pulsar Event Stream"



6. Click "Save" to generate your key

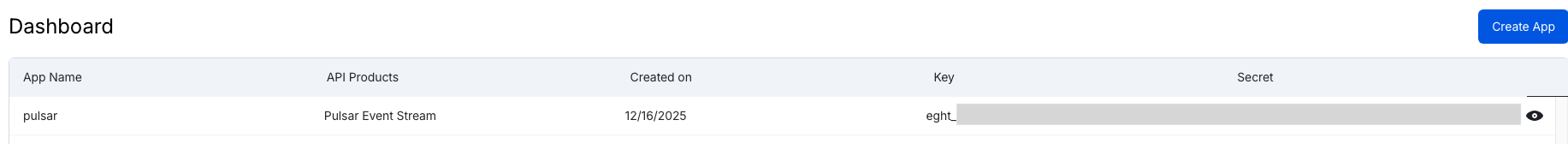

   The dashboard will display your newly created app with the generated API key:



   Note: The key starts with eght_ and can be viewed anytime by clicking the eye icon.

Required Permission: Application Credentials permission (Company Admin Role or custom role)

Documentation: How to get API Keys

Usage:

X-API-Key: eght_your_key_here

Contact Center (CC) Tokens (X-API-Key Header)

Characteristics:

• Obtained from Contact Center Configuration Manager
• Token format: Base64-encoded username:api-password (does not start with eght_)
• Authentication method: HTTP header X-API-Key (same as Admin Console Keys)

How to Obtain:

1. Log into Contact Center Configuration Manager
2. Navigate to Integration > API Token
3. If you already have a Data Request Token displayed, copy that token
4. If no token exists, click "New Token" to generate one, then copy it

Important Notes:

• The token combines your username and API password
• Token does not expire unless you generate a new one
• Generating a new token invalidates the previous token for all use cases

Documentation: Streaming API Overview

Usage:

X-API-Key: your_cc_token_here

📘 Backward Compatibility

CC Tokens also continue to work with the legacy Authorization: Basic header and ?token=Basic+ URL parameter for backward compatibility with existing clients.

📘 Authentication Methods: Header vs Query Parameter

The API key can be provided in two ways:

HTTP Header (Recommended):

• X-API-Key: your-key-here
• Header names are case-insensitive per HTTP spec (X-API-Key, x-api-key, X-Api-Key all work)
• More secure (not logged in URLs)

Query Parameter:

• ?x-api-key=your-key-here

• Parameter name is case-sensitive (must be lowercase x-api-key)

• Useful when headers cannot be set (e.g., some browser contexts)

Example Usage

Using Admin Console Keys (X-API-Key Header)

✅ Recommended Method

Admin Console Keys are the recommended authentication method for production applications.

Go

headers := http.Header{}
headers.Set("X-API-Key", "eght_your_admin_console_key")

dialer := websocket.Dialer{
    HandshakeTimeout: 45 * time.Second,
    TLSClientConfig: &tls.Config{
        InsecureSkipVerify: false, // Set to true only for testing
    },
}

conn, resp, err := dialer.Dial(wsURL, headers)

Java

String xApiKey = "eght_your_admin_console_key";
PulsarWebSocketClient client = new PulsarWebSocketClient(serverUri, xApiKey);

// The constructor automatically adds the header:
if (xApiKey != null && !xApiKey.isEmpty()) {
    addHeader("X-API-Key", xApiKey);
}

Node.js

const WebSocket = require('ws');

const wsURL = 'wss://your-host/ws/v2/reader/persistent/tenant/namespace/topic';
const ws = new WebSocket(wsURL, {
    headers: {
        'X-API-Key': 'eght_your_admin_console_key'
    }
});

Using CC Tokens (X-API-Key Header)

📘 Alternative Method

CC Tokens remain supported for existing integrations or when Admin Console Keys are not available. Use the X-API-Key header (same format as Admin Console Keys).

Go

headers := http.Header{}
headers.Set("X-API-Key", "your_cc_token_here")

dialer := websocket.Dialer{
    HandshakeTimeout: 45 * time.Second,
    TLSClientConfig: &tls.Config{
        InsecureSkipVerify: false, // Set to true only for testing
    },
}

wsURL := "wss://your-host/ws/v2/reader/persistent/tenant/namespace/topic"
conn, resp, err := dialer.Dial(wsURL, headers)

Java

String ccToken = "your_cc_token_here";
String wsURL = "wss://your-host/ws/v2/reader/persistent/tenant/namespace/topic";

// Create client with X-API-Key header
PulsarWebSocketClient client = new PulsarWebSocketClient(URI.create(wsURL));
client.addHeader("X-API-Key", ccToken);

Node.js

const WebSocket = require('ws');

const wsURL = 'wss://your-host/ws/v2/reader/persistent/tenant/namespace/topic';
const ws = new WebSocket(wsURL, {
    headers: {
        'X-API-Key': 'your_cc_token_here'
    }
});

Python

import websocket

ws_url = "wss://your-host/ws/v2/reader/persistent/tenant/namespace/topic"
headers = {
    "X-API-Key": "your_cc_token_here"
}

ws = websocket.WebSocketApp(ws_url, header=headers)

Browser

// Browsers cannot set custom headers for WebSockets
// Use URL parameter instead
const wsURL = 'wss://your-host/ws/v2/reader/persistent/tenant/namespace/topic?x-api-key=your_cc_token_here';
const ws = new WebSocket(wsURL);

// Note: Token will be visible in browser DevTools and history

Troubleshooting Authentication

Common Issues

401 Unauthorized

• Verify your credential is correct and complete
• For Admin Console Keys: Ensure the key starts with eght_
• For CC Tokens: Ensure the token is the full base64-encoded string from Configuration Manager
• Check that you're using the right tenant name
• Ensure you're using the X-API-Key header (or ?x-api-key= URL parameter for browsers)

Next Steps

• Connection Guide - Learn about establishing connections
• Message Format - Understand event structure
• Code Examples - See authentication in action
